Description
The SMY Stealth Line was created to maximize all or your Subarus handling without compromising the comfort. Allowing your car to eat up curves and help you maneuver effortlessly around town or the track. Keep your self planted and safe while driving.? OEM Front Sway bar is 23.5mm / OEM Rear is 19mm.
Features:
– Solid 26mm 2-point adjustable front sway bar
– Front Bushings w/ Brackets that have built-in grease ports
– Solid 24mm 3-point adjustable rear sway bar
– Rear Bushings w/ Brackets that have built-in grease ports
– Both Front and Rear Sway Bars have built in Collars
– Heavy Duty Adjustable Front M12 Endlinks
– Heavy Duty Adjustable Rear M12 Endlinks
– Heavy Duty Adjustable Toe Arms

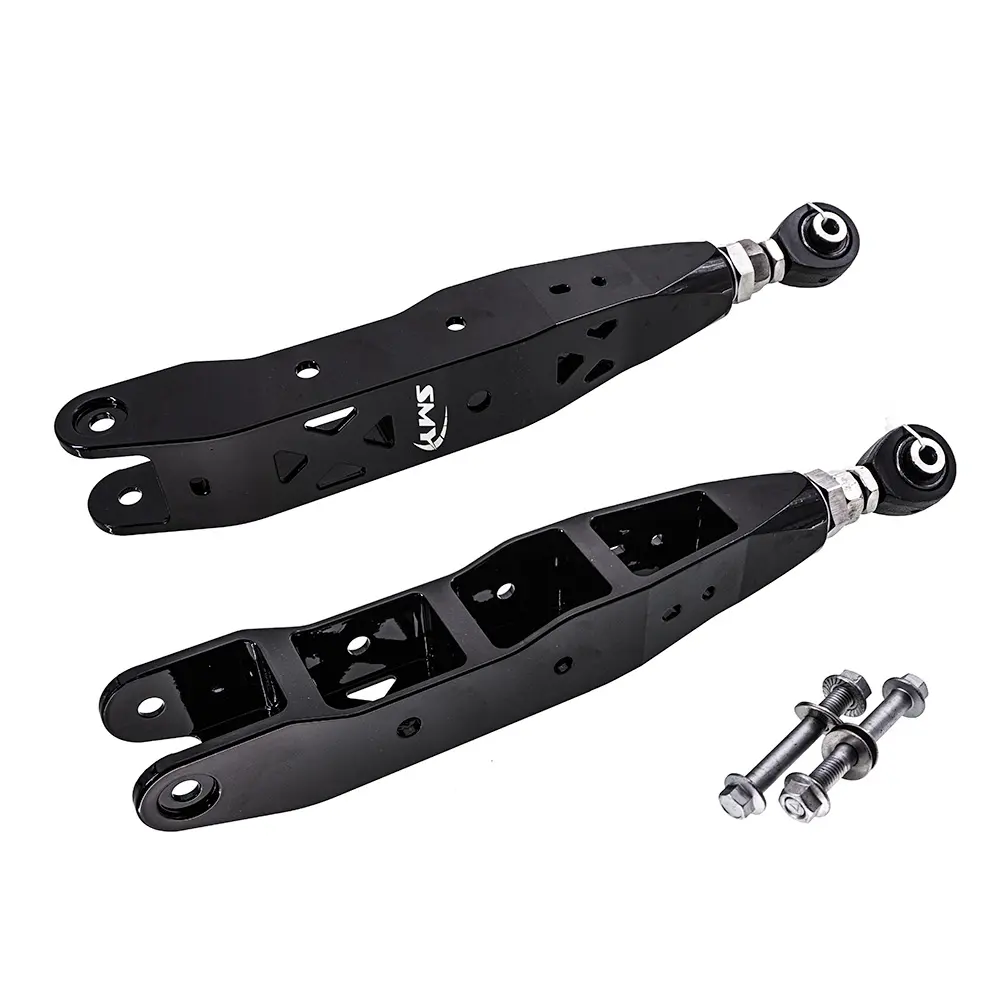

– CNC Adjustable Aluminum Control Arms
– Powder-coated black for extra protection and Stealth Look
– Torque Specs = 34 ft-lb to Endlinks
– Endlinks come pre-greased from factory.? You can add more grease if required in the future.? (recommended grease is REDLINE CV2)
Includes:
– 1 x SMY-SUS-SBF26VB
– 1 x SMY-SUS-SBR22VB
– 1 x SMY-SUS-VBFE
– 1 x SMY-SUS-REB
– 1 x SMY-SUS-CTK-CNC
– Lifetime Warranty
Installation:
– Control Arm Endlink bolts = 34 Foot-lbs
– Control Arm All 3 other points = 89 Foot-lbs
– Toe Arms Subframe Side = 74 Foot-lbs
– Toe Arms Other End = 44 Foot-lbs
– Front Endlink Bolts =?44 Foot-lbs
– Rear Endlink Bolts =?34 Foot-lbs
– Front and Rear Swaybar Mounts =?34 Foot-lbs
– Alignment is highly Recommended after installation
– Front and Rear Endlinks should add grease into ports after installation and wiped clean
– TO PROPERLY TORQUE DOWN SUSPENSION THE PARTS MUST BE UNDER FULL LOAD, NOT SUSPENDED IN THE AIR
Applications:
2022-2026 Subaru WRX (Lowered Cars ONLY)
